Peak Energy PK12V60H 12V 60Ah Battery

Peak Energy PK12V60H 12V 60Ah Battery
High Performance
Brand New Fresh Stock
1 Year Warranty Included
Availability: In stock
CAD $329.99

Description

Details

SPECIFICATIONS
Model DescriptionPeak Energy PK12V60H rechargeable sealed lead acid (VRLA) battery
Nominal Voltage12 Volt
Capacity (@ 20hr-rate)60 Ah
Weight41.21 Lbs (18.69 kg)
Case MaterialA.B.S. (UL94-HB)
TerminalUniversal Bolt and Nut Type (M8)
Maximum Short Duration Discharge Current900 Ah (5 Seconds or Less);
600 Ah (10 Seconds or Less);
360 Ah (60 Seconds or Less)
Internal Resistance6.8 mOhm (Fully Charged Battery) (Approx)
Energy Density (@ 20hr-rate)1.87 watt-hours/cubic inch (114 watt-hours/litre)
Specific Energy (@ 20hr-rate)17.47 watt-hours/pound (38.52 watt-hours/kg)
Operating Temperature RangeDischarge: -4°F (-20°C)  ~ 122°F (50°C);
Recharge: 32°F (0°C)  ~ 104°F (40°C);
Storage:-4°F (-20°C)  ~ 104°F (40°C)
Self Discharge RateAbout 3 %/Month @ 68 ~ 77°F (20 ~ 25°C)

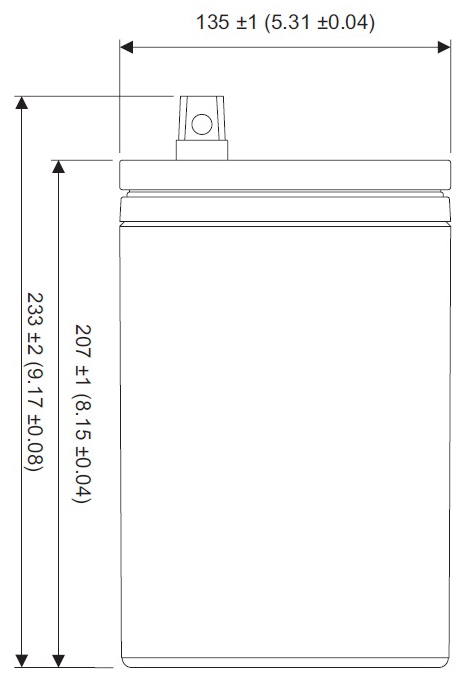

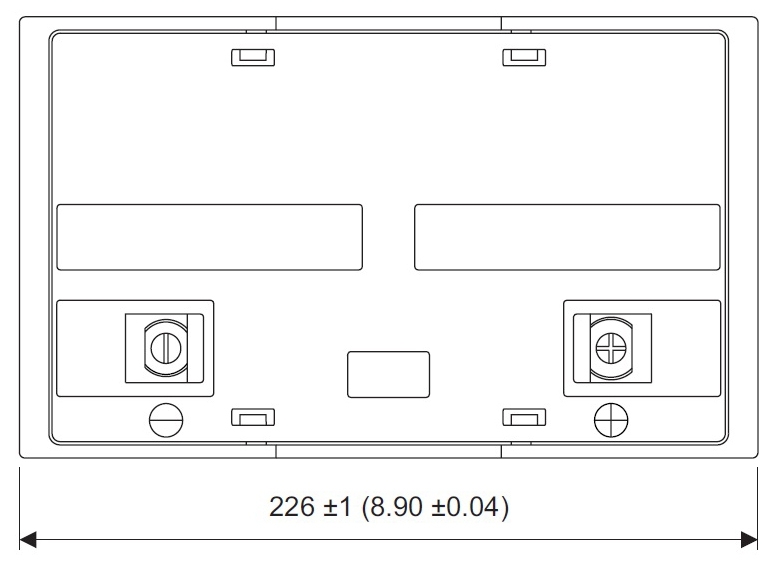

DIMENSIONS


Length8.90 in. (226 mm)
Width5.31 in. (135 mm)
Case Height8.15 in. (207 mm)
Terminal Height9.17 in. (233 mm)





 CHARTS

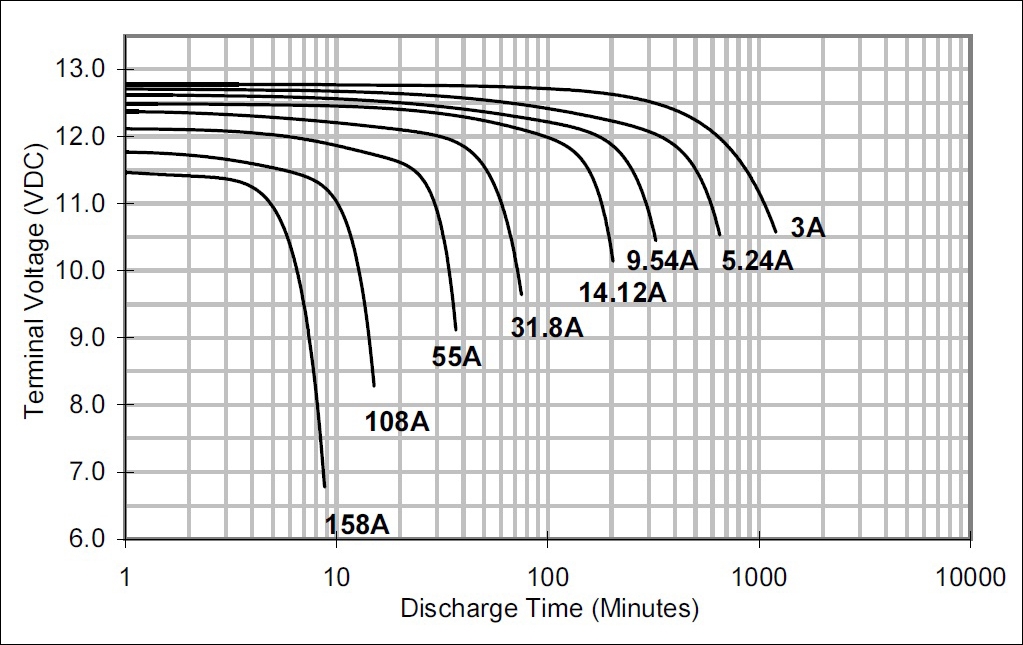

Constant Current Discharge Characteristics at 73.4°F (23°C)

Discharge Time

Discharge Amperes

Capacity in Ah’s

Final Voltage

Discharge

C-Rate

20.0 hr

3.00

60.00

10.50

0.05

9.2 hr

6.00

55.50

10.50

0.10

5.0 hr

10.2

50.85

10.29

0.17

4.1 hr

12

48.85

10.20

0.20

2.1 hr

21

44.69

9.94

0.35

64.0 min

36

38.40

9.54

0.6

32.5 min

60

32.45

9.00

1.0

7.2 min

180

21.54

6.00

3.0




Recharge Method: Connect battery to a Current Limited, Constant Voltage Source.

Limit the initial recharge current to 15Ah or less.

To promote satisfactory performance in Cyclic applications, a minimum recharge current of 6 Ah is recommended.

Employ  Charge Voltage Temperature Compensation when battery  temperature is less than 50°F (10°C) 0r greater than 86°F (30°C), Use the Recommended voltage and normalize to 77°F (25°C).

The use of compensation through the whole temperature range is not generally necessary, but doing so may optimize service life.

If the Recommended recharge voltage is used, no Temperature Compensation is required within the range of 50 ~ 86°F (10 ~ 30°C)

Cyclic Application Recharge Voltage (77°F / 25°C)

Minimum

Recommended

Maximum




Volts D.C.

Per Cell

14.40

14.55

14.70

2.40

2.425

2.45

Temperature Coefficient: -2.8mV/°F/Cell (-5mV/°C/Cell)

Standby Application Recharge Voltage (77°F/25°C)

Minimum

Recommended

Maximum




Volts D.C.

Per Cell

13.50

13.65

13.80

2.25

2.275

2.30

Temperature Coefficient: -1.7mV/°F/Cell (-3mV/°C/Cell)
