Peak Energy PK12V26B1 12V 26Ah Battery
- Peak Energy PK12V26B1 12V 26Ah Battery
- High Performance
- Brand New Fresh Stock
- 1 Year Warranty Included
100% secure payment
Need help choosing? Call toll free: 416-848-7755 or chat with an expert
| SPECIFICATIONS | |
| Model Description | Peak Energy PK12V26B1 rechargeable sealed lead acid (VRLA) battery |
| Nominal Voltage | 12 Volt |
| Capacity (@ 20hr-rate) | 26 Ah |
| Weight | 21.15 Lbs (9.59 kg) |
| Case Material | A.B.S. (UL94-HB) |
| Terminal | Bolt and Nut Type (M5) |
| Maximum Short Duration Discharge Current | 390 Ah (5 Seconds or Less); 260 Ah (10 Seconds or Less); 156 Ah (60 Seconds or Less) |
| Internal Resistance | 8 mOhm (Fully Charged Battery) (Approx) |
| Energy Density (@ 20hr-rate) | 1.4 watt-hours/cubic inch (85.24 watt-hours/litre) |
| Specific Energy (@ 20hr-rate) | 14.75 watt-hours/pound (32.52 watt-hours/kg) |
| Operating Temperature Range | Discharge: -4°F (-20°C) ~ 122°F (50°C); Recharge: 32°F (0°C) ~ 104°F (40°C); Storage:-4°F (-20°C) ~ 104°F (40°C) |
| Self Discharge Rate | About 3 %/Month @ 68 ~ 77°F (20 ~ 25°C) |

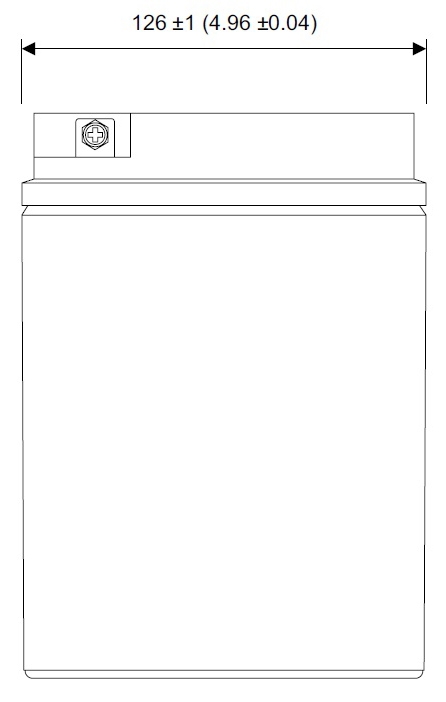

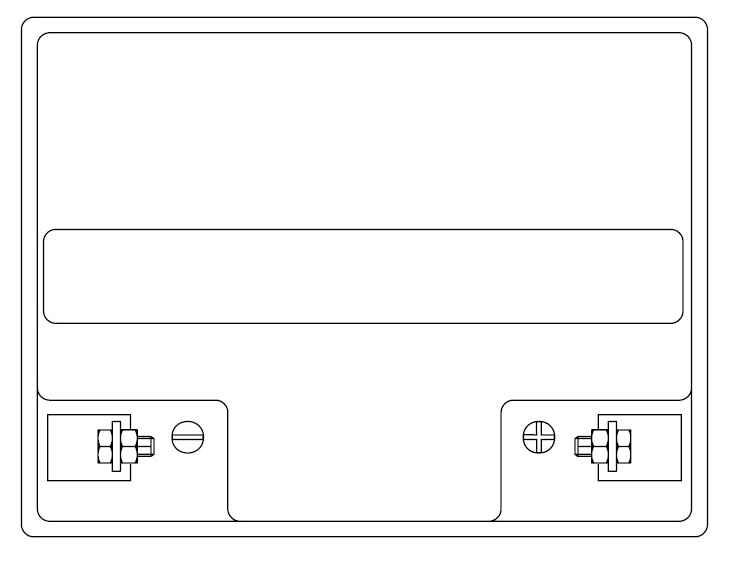

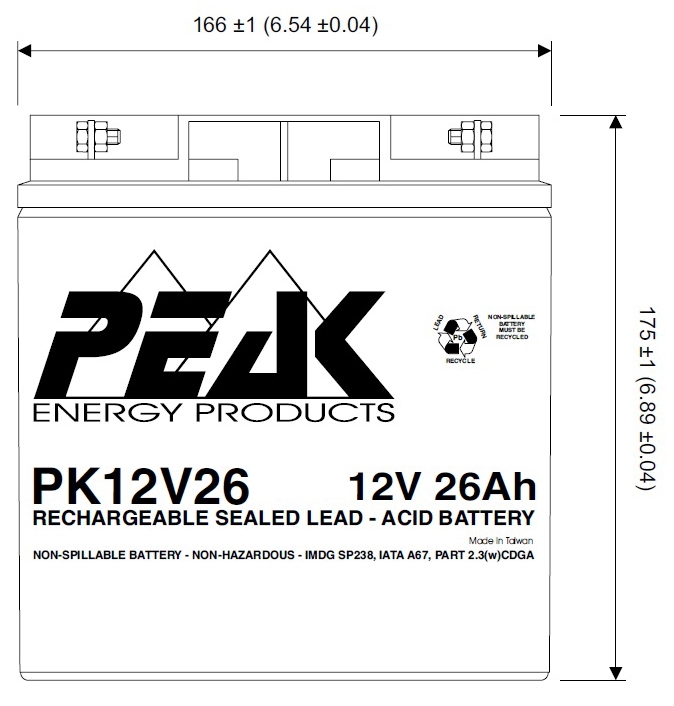

DIMENSIONS | |
| Length | 6.54 in. (166 mm) |
| Width | 4.96 in. (126 mm) |
| Case Height | 6.89 in. (175 mm) |
| Terminal Height | 6.89 in. (175 mm) |
| |

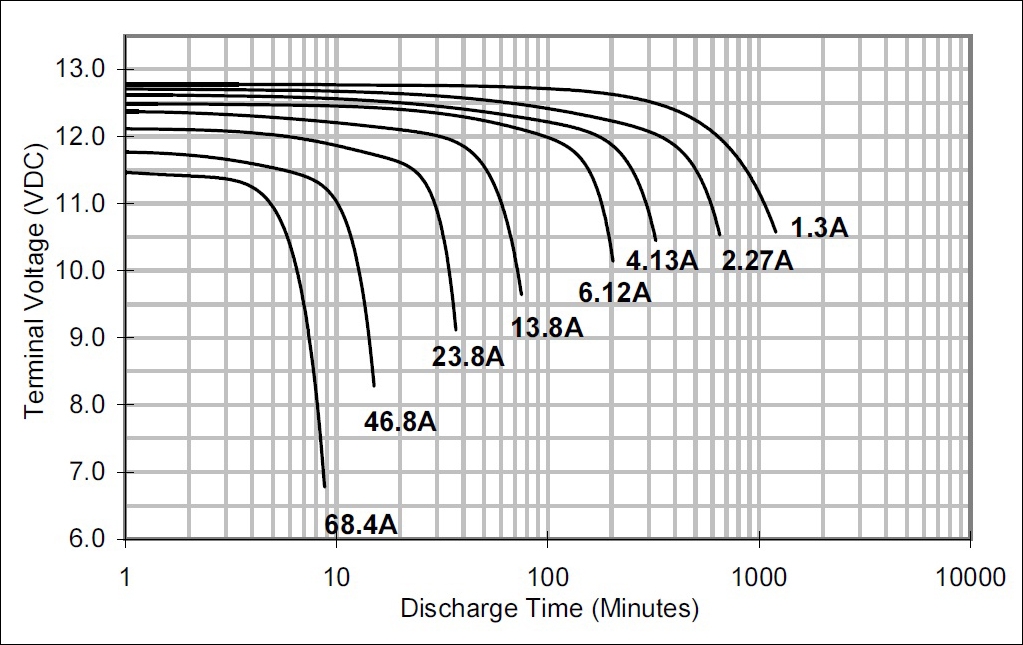

CHARTS | |
 | |
Discharge Time | Discharge Amperes | Capacity in Ah’s | Final Voltage | Discharge C-Rate |
20.0 hr | 1.30 | 26.00 | 10.50 | 0.05 |
9.2 hr | 2.60 | 24.05 | 10.50 | 0.10 |
5.0 hr | 4.42 | 22.03 | 10.29 | 0.17 |
4.1 hr | 5.20 | 21.17 | 10.20 | 0.20 |
2.1 hr | 9.10 | 19.37 | 9.94 | 0.35 |
64.0 min | 15.6 | 16.64 | 9.54 | 0.6 |
32.5 min | 26.0 | 14.06 | 9.00 | 1.0 |
7.2 min | 78.0 | 9.33 | 6.00 | 3.0 |
Recharge Method: Connect battery to a Current Limited, Constant Voltage Source. | ||||
Limit the initial recharge current to 6.5 Ah or less. To promote satisfactory performance in Cyclic applications, a minimum recharge current of 2.6 Ah is recommended. Employ Charge Voltage Temperature Compensation when battery temperature is less than 50°F (10°C) 0r greater than 86°F (30°C), Use the Recommended voltage and normalize to 77°F (25°C). The use of compensation through the whole temperature range is not generally necessary, but doing so may optimize service life. If the Recommended recharge voltage is used, no Temperature Compensation is required within the range of 50 ~ 86°F (10 ~ 30°C) | Cyclic Application Recharge Voltage (77°F / 25°C) | |||
Minimum | Recommended | Maximum | Volts D.C. Per Cell | |
14.40 | 14.55 | 14.70 | ||
2.40 | 2.425 | 2.45 | ||
Temperature Coefficient: -2.8mV/°F/Cell (-5mV/°C/Cell) | ||||
Standby Application Recharge Voltage (77°F/25°C) | ||||
Minimum | Recommended | Maximum | Volts D.C. Per Cell | |
13.50 | 13.65 | 13.80 | ||
2.25 | 2.275 | 2.30 | ||
Temperature Coefficient: -1.7mV/°F/Cell (-3mV/°C/Cell) | ||||
