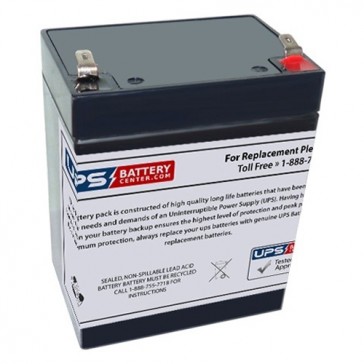

12V 2.9Ah Sealed Lead Acid Battery with F1 Terminals - Right side positive

12V 2.9Ah Sealed Lead Acid Rechargeable Battery
Model: TLV1229R
Terminals: F1 0. 187" Right side positive (+)
Length: 79mm (3.11") / Width: 56mm (2.20") / Height: 99mm (3.90")
High Performance
Brand New Fresh Stock
1 Year Warranty Included
Availability: In stock
CAD $29.69

Description

Details

Features of the TLV1229R - 12V 2.9Ah Sealed Lead Acid Battery with F1 Terminals - Positive terminal on right side

• Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99% and freedom from electrolyte maintenance or water adding
• Not restricted for air transport-complies with IATA/ICAO Special Provision A67
• UL-recognized component
• Can be mounted in any orientation
• Computer designed lead, calcium tin alloy grid for high power density
• Long service life in float or cyclic applications
• Maintenance-free operation
• Low self discharge


Applications

• UPS Standby Power Applications
• Data Centers
• Emergency 911 Centers
• Hospitals & Medical Applications
• Military Power Equipment
• Emergency Lighting
• Fire Detection and Alarm Devices


Product Specifications

Dimensions
Terminal Type: F1
Length (mm/inch): 79/3.11
Width (mm/inch): 56/2.20
Height (mm/inch): 99/3.90
Total Height (mm/inch): 105/4.13
Approx. Weight (kg/lbs): 1.05/2.32


Performance Characteristics

Nominal Voltage: 12V

Nominal Capacity 77ºF (25ºC)
20HR (10.5V): 2.9Ah
10HR (10.5V): 2.7Ah
1HR (9.60V): 1.89Ah

Internal Resistance
Fully Charged battery 77ºF(25ºC): Approx. 42mΩ

Capacity Affected by Temperature (20 Hour)
40°C: 102%
25°C: 100%
0°C: 85%
-15°C: 65%

Self-Discharge (25°C)
3 Month: Remaining Capacity: 91%
6 Month: Remaining Capacity: 82%
12 Month: Remaining Capacity: 65%

Nominal Operating Temperature:
25°C±3°C (77°F±5°F)

Operating Temperature Range
Discharge: -15°C~50°C(5°F~122°F)
Charge: -10°C~50°C(14°F~122°F)
Storage: -20°C~50°C(-4°F~122°F)

Float Charging Voltage (25°C):
13.60 to 13.80V Temperature compensation: -18mV/°C

Cyclic Charging Voltage (25°C):
14.50 to 14.90V Temperature compensation: -30mV/°C

Maximum Charging Current: 0.87A

Maximum Discharge Current: 43.5A (5 sec)

Terminal Material: Copper

Designed Floating Life: 10 Years


TLV1229R - 12V 2.9Ah Sealed Lead Acid Battery with F1 Terminals - Right Side Positive - Side Diagram

TLV1229R - 12V 2.9Ah Sealed Lead Acid Battery with F1 Terminals - Right Side Positive - Top Diagram

TLV1229R - 12V 2.9Ah Sealed Lead Acid Battery with F1 Terminals - Right Side Positive - Terminal Diagram


Constant Current Discharge Characteristics
TLV1229R - 12V 2.9Ah Sealed Lead Acid Battery with F1 Terminals - Right Side Positive - Constant Current Discharge Characteristics

Constant Power Discharge Characteristics
TLV1229R - 12V 2.9Ah Sealed Lead Acid Battery with F1 Terminals - Right Side Positive - Constant Power Discharge Characteristics
(Note) The above characteristics data are average values obtained within three charge/discharge cycles not the mimimum values.


TLV1229R - 12V 2.9Ah Sealed Lead Acid Battery with F1 Terminals - Right Side Positive - Discharge Characteristics   TLV1229R - 12V 2.9Ah Sealed Lead Acid Battery with F1 Terminals - Right Side Positive - Charging Characteristics

TLV1229R - 12V 2.9Ah Sealed Lead Acid Battery with F1 Terminals - Right Side Positive - Effect of Temperature on Capacity   TLV1229R - 12V 2.9Ah Sealed Lead Acid Battery with F1 Terminals - Right Side Positive - Self-discharge Characteristics

TLV1229R - 12V 2.9Ah Sealed Lead Acid Battery with F1 Terminals - Right Side Positive - The Relationship for Open Circuit Voltage and Residual Capacity   TLV1229R - 12V 2.9Ah Sealed Lead Acid Battery with F1 Terminals - Right Side Positive - The Relationship for Charging Voltage and Temperature

TLV1229R - 12V 2.9Ah Sealed Lead Acid Battery with F1 Terminals - Right Side Positive - Floating Life on Temperature   TLV1229R - 12V 2.9Ah Sealed Lead Acid Battery with F1 Terminals - Right Side Positive - Cycle Life on D.O.D.
