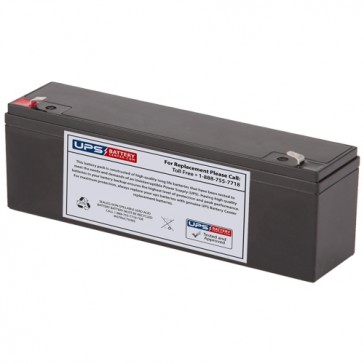

Features of the TLV1240S - 12V 4Ah Sealed Lead Acid Battery with F1 Terminals

• Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99% and freedom from electrolyte maintenance or water adding
• Not restricted for air transport-complies with IATA/ICAO Special Provision A67
• UL-recognized component
• Can be mounted in any orientation
• Computer designed lead, calcium tin alloy grid for high power density
• Long service life in float or cyclic applications
• Maintenance-free operation
• Low self discharge

Applications

• UPS Standby Power Applications
• Data Centers
• Emergency 911 Centers
• Hospitals & Medical Applications
• Military Power Equipment
• Emergency Lighting
• Fire Detection and Alarm Devices

Product Specifications

Dimensions
Terminal Type: F1
Length (mm/inch): 195/7.67
Width (mm/inch): 47/1.85
Height (mm/inch): 70.5/2.78
Total Height (mm/inch): 76/2.99
Approx. Weight (kg/lbs): 1.62/3.57

Performance Characteristics

Nominal Voltage: 12V

Internal Resistance
Fully Charged battery 77ºF(25ºC): Approx. 19mΩ

Self-Discharge (25°C)
3% of capacity declined per month at 20°C (average)

Operating Temperature Range
Discharge: -20～60°C
Charge: -10～60°C
Storage: -20～60°C

Maximum Discharge Current 77°F (25°C): 60A (5 sec)

Short Circuit Current: 200A

Charge Methods: Constant Voltage Charge 77°F (25°C)

Cycle use: 2.30-2.35VPC
Maximum charging current: 2A
Temperature compensation: -30mV/°C

Standby use: 2.23-2.27VPC
Temperature compensation: -20mV/°C

Designed Life: 5 Years

Discharge Constant Current
