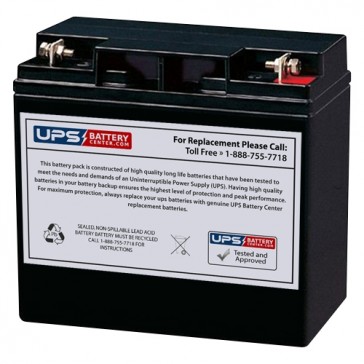

12V 15Ah Sealed Lead Acid Battery with F3 Terminals

12V 15Ah Sealed Lead Acid Rechargeable Battery
Model: TLV12150F3
Terminals: F3 - Nut & Bolt
Length: 181mm (7.13") / Width: 77mm (3.03") / Height: 167mm (6.57")
High Performance
Brand New Fresh Stock
1 Year Warranty Included

Availability: In stock

CAD $49.99

Shipping Information

  •   This item is in stock and ships within 1 business day
  •   We will gladly accept returns for any reason within 30 days of receipt of delivery
  •   Continental USA & Canada

Description

Details

Features of the TLV12150F3 - 12V 15Ah Sealed Lead Acid Battery with F3 Terminals

• Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99% and freedom from electrolyte maintenance or water adding
• Not restricted for air transport-complies with IATA/ICAO Special Provision A67
• UL-recognized component
• Can be mounted in any orientation
• Computer designed lead, calcium tin alloy grid for high power density
• Long service life in float or cyclic applications
• Maintenance-free operation
• Low self discharge


Applications

• UPS Standby Power Applications
• Data Centers
• Emergency 911 Centers
• Hospitals & Medical Applications
• Military Power Equipment
• Emergency Lighting
• Fire Detection and Alarm Devices


Product Specifications

Dimensions
Terminal Type: F3
Length (mm/inch): 181/7.13
Width (mm/inch): 77/3.03
Height (mm/inch): 167/6.57
Total Height (mm/inch): 167/6.57
Approx. Weight (kg/lbs): 5.08/11.2


Performance Characteristics

Nominal Voltage: 12V

Number of Cell: 6

Nominal Capacity 77ºF (25ºC)
20HR (10.5V): 15Ah
10HR (10.5V): 14Ah
5HR (10.5V): 12.5Ah
1HR (9.6V): 10.3Ah

Internal Resistance
Fully Charged battery 77ºF(25ºC): Approx. 18mΩ

Self-Discharge (25°C)
3% of capacity declined per month at 20°C (average)

Operating Temperature Range
Discharge: -20~60°C
Charge: -10~60°C
Storage: -20~60°C

Maximum Discharge Current 77°F (25°C): 225A (5 sec)

Short Circuit Current: 750A

Charge Methods: Constant Voltage Charge 77°F (25°C)
Cycle Use: 2.30-2.35VPC
Maximum Charging Current: 6A
Temperature Compensation: -30mV/°C

Standby Use: 2.23-2.27VPC
Temperature Compensation: -20mV/°C


TLV12150F3 - 12V 15Ah Sealed Lead Acid Battery with F3 Terminals - Side Diagram

TLV12150F3 - 12V 15Ah Sealed Lead Acid Battery with F3 Terminals - Top Diagram

TLV12150F3 - 12V 15Ah Sealed Lead Acid Battery with F3 Terminals - Terminal Diagram


Constant Current Discharge Characteristics
TLV12150F3 - 12V 15Ah Sealed Lead Acid Battery with F3 Terminals - Constant Current Discharge Characteristics

Constant Power Discharge Characteristics
TLV12150F3 - 12V 15Ah Sealed Lead Acid Battery with F3 Terminals - Constant Power Discharge Characteristics
(Note) The above characteristics data are average values obtained within three charge/discharge cycles not the mimimum values.


Battery Construction
TLV12150F3 - 12V 15Ah Sealed Lead Acid Battery with F3 Terminals - Battery Construction


TLV12150F3 - 12V 15Ah Sealed Lead Acid Battery with F3 Terminals - Discharge Characteristic   TLV12150F3 - 12V 15Ah Sealed Lead Acid Battery with F3 Terminals - Constant Voltage Charging Characteristic

TLV12150F3 - 12V 15Ah Sealed Lead Acid Battery with F3 Terminals - Relationship Between Charging Voltage and Temperature   TLV12150F3 - 12V 15Ah Sealed Lead Acid Battery with F3 Terminals - Self-discharge Characteristic

TLV12150F3 - 12V 15Ah Sealed Lead Acid Battery with F3 Terminals - Life Characteristics of Standby Use   TLV12150F3 - 12V 15Ah Sealed Lead Acid Battery with F3 Terminals - Cycle Service Life in Relation to Depth of Discharge

TLV12150F3 - 12V 15Ah Sealed Lead Acid Battery with F3 Terminals - Temperature Effects on Float Life   TLV12150F3 - 12V 15Ah Sealed Lead Acid Battery with F3 Terminals - Temperature Effects on Capacity
