Peak Energy PK6V0.5W2 6V 0.5Ah Battery

Peak Energy PK6V0.5W2 6V 0.5Ah Battery
High Performance
Brand New Fresh Stock
1 Year Warranty Included

Availability: Out of stock

CAD $16.99
Shipping Information

  •   This item is in stock and ships within 1 business day
  •   We will gladly accept returns for any reason within 30 days of receipt of delivery
  •   Continental USA & Canada

Description

Details

SPECIFICATIONS
Model DescriptionPeak Energy PK6V0.5W2 rechargeable sealed lead acid (VRLA) battery
Nominal Voltage6 Volt
Capacity (@ 20hr-rate)0.5 Ah
Weight0.23 Lbs (0.10 kg)
Case MaterialA.B.S. (UL94-HB)
Terminal22 AWG Wire Lead with Molex #5264-02 Plug
Maximum Short Duration Discharge Current7.5 Ah (5 Seconds or Less);
5 Ah (10 Seconds or Less);
3 Ah (60 Seconds or Less)
Internal Resistance138 mOhm (Fully Charged Battery) (Approx)
Energy Density (@ 20hr-rate)1.19 watt-hours/cubic inch (72.6 watt-hours/litre)
Specific Energy (@ 20hr-rate)13.08 watt-hours/pound (28.85 watt-hours/kg)
Operating Temperature RangeDischarge: -4°F (-20°C)  ? 122°F (50°C);
Recharge: 32°F (0°C)  ? 104°F (40°C);
Storage:-4°F (-20°C)  ? 104°F (40°C)
Self Discharge RateAbout 3 %/Month @ 68 ? 77°F (20 ? 25°C)

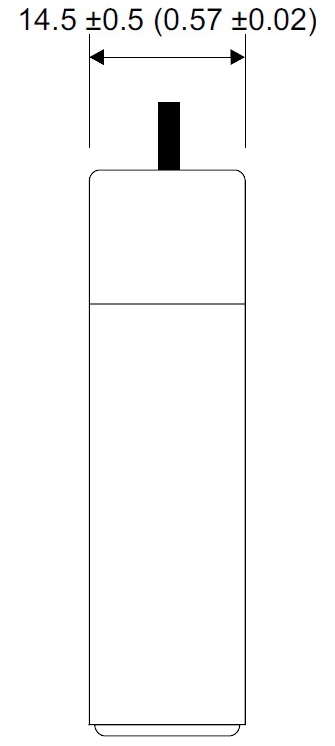

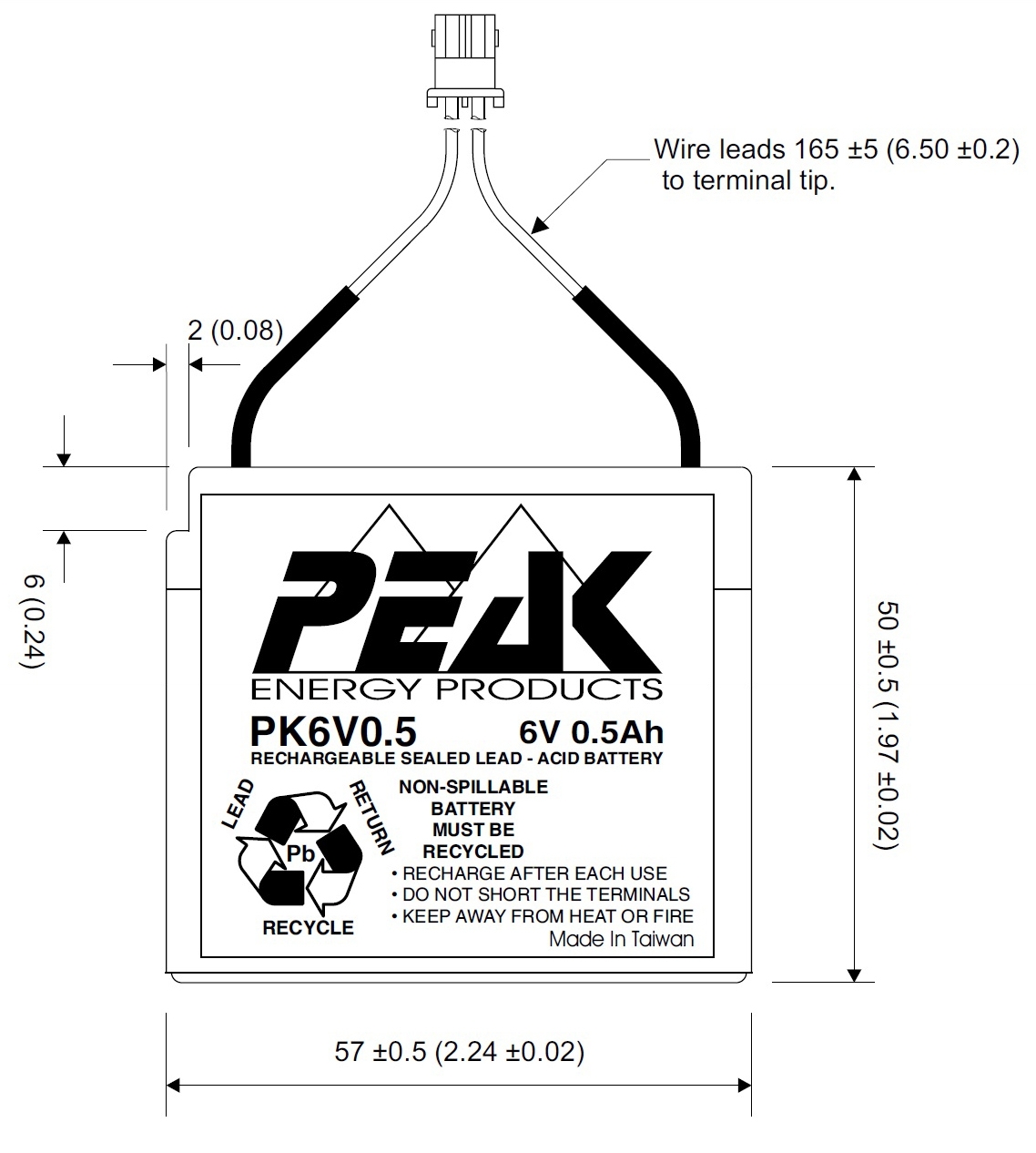

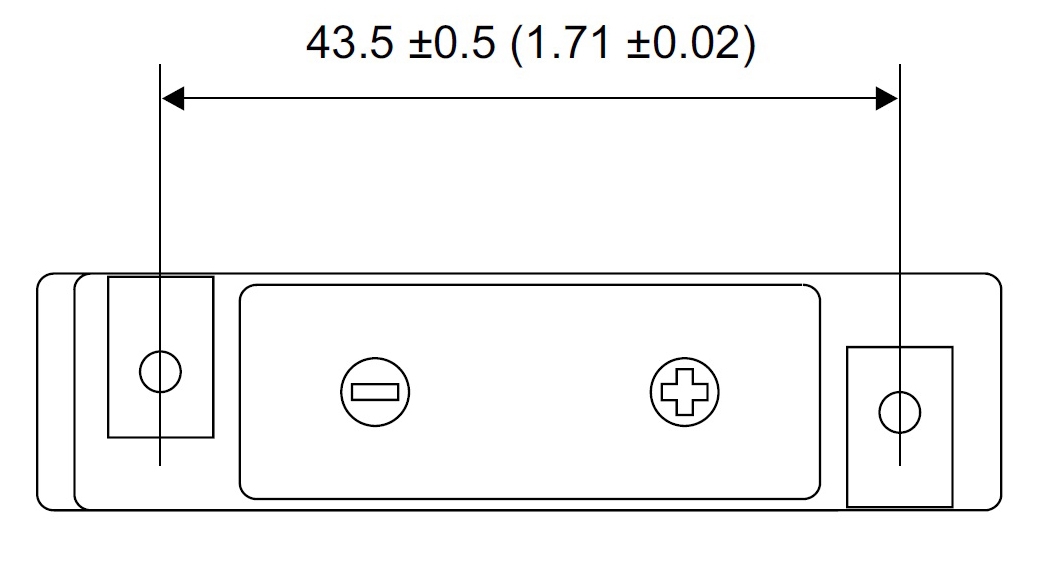

DIMENSIONS


Length2.24 in. (57 mm)
Width0.57 in. (15 mm)
Case Height1.97 in. (50 mm)
Terminal Height1.97 in. (50 mm)






CHARTS

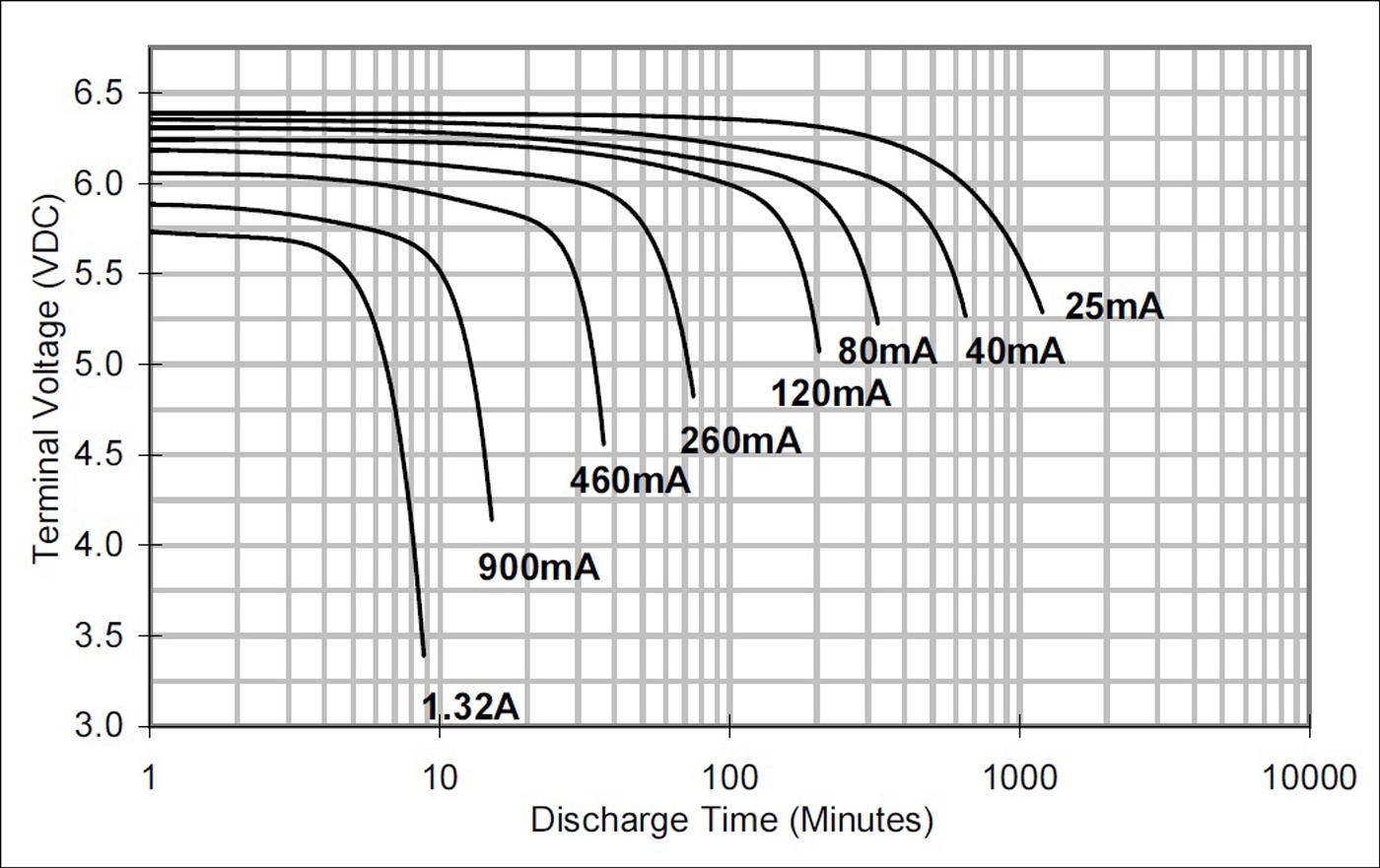

Constant Current Discharge Characteristics at 73.4°F (23°C)

Discharge Time

Discharge Amperes

Capacity in Ah’s

Final Voltage

Discharge

C-Rate

20.0 hr

0.025

0.500

5.25

0.05

9.2 hr

0.050

0.462

5.25

0.10

5.0 hr

0.085

0.424

5.15

0.17

4.1 hr

0.100

0.407

5.10

0.20

2.1 hr

0.175

0.372

4.97

0.35

64.0 min

0.30

0.32

4.77

0.6

32.5 min

0.50

0.27

4.50

1.0

7.2 min

1.50

0.18

3.00

3.0




Recharge Method: Connect battery to a Current Limited, Constant Voltage Source.

Limit the initial recharge current to 125 mA or less.

To promote satisfactory performance in Cyclic applications, a minimum recharge current of 50 mA is recommended.

Employ  Charge Voltage Temperature Compensation when battery  temperature is less than 50°F (10°C) 0r greater than 86°F (30°C), Use the Recommended voltage and normalize to 77°F (25°C).

The use of compensation through the whole temperature range is not generally necessary, but doing so may optimize service life.

If the Recommended recharge voltage is used, no Temperature Compensation is required within the range of 50 ? 86°F (10 ? 30°C)

Cyclic Application Recharge Voltage (77°F / 25°C)

Minimum

Recommended

Maximum




Volts D.C.

Per Cell

7.20

7.28

7.35

2.40

2.425

2.45

Temperature Coefficient: -2.8mV/°F/Cell (-5mV/°C/Cell)

Standby Application Recharge Voltage (77°F/25°C)

Minimum

Recommended

Maximum




Volts D.C.

Per Cell

6.25

6.83

6.90

2.25

2.275

2.30

Temperature Coefficient: -1.7mV/°F/Cell (-3mV/°C/Cell)
