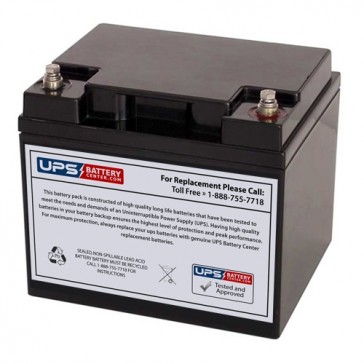

12V 45Ah Sealed Lead Acid Battery with F11 Terminals

12V 45Ah Sealed Lead Acid Rechargeable Battery
Model: TLV12450F11
Terminals: F11 - Insert Terminals (Hardware provided)
Length: 198mm (7.79") / Width: 166mm (6.53") / Height: 171mm (6.73")
High Performance
Brand New Fresh Stock
1 Year Warranty Included
Availability: In stock
CAD $142.99

Description

Details

Features of the TLV12450F11 - 12V 45Ah Sealed Lead Acid Battery with F11 - Insert Terminals

• Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99% and freedom from electrolyte maintenance or water adding
• Not restricted for air transport-complies with IATA/ICAO Special Provision A67
• UL-recognized component
• Can be mounted in any orientation
• Computer designed lead, calcium tin alloy grid for high power density
• Long service life in float or cyclic applications
• Maintenance-free operation
• Low self discharge


Applications

• UPS Standby Power Applications
• Data Centers
• Emergency 911 Centers
• Hospitals & Medical Applications
• Military Power Equipment
• Emergency Lighting
• Fire Detection and Alarm Devices


Product Specifications

Dimensions
Terminal Type: F11
Length (mm/inch): 198/7.79
Width (mm/inch): 166/6.53
Height (mm/inch): 171/6.73
Total Height (mm/inch): 171/6.73
Approx. Weight (kg/lbs): 13.5/29.7


Performance Characteristics

Cells Per Unit: 6

Voltage Per Unit: 12

Capacity: 45Ah@10hr-rate to 1.80V per cell @25°C

Maximum Discharge Current:
450A (5 sec)

Internal Resistance:
Approx. 8mΩ

Operating Temperature Range
Discharge: -20°C~60°C
Charge: 0°C~50°C
Storage: -20°C~60°C

Nominal Operating Temperature Range:
25°C±5°C

Float Charging Voltage:
13.6 to 13.8 VDC/unit Average at 25°C

Recommended Maximum Charging Current: 13.5A

Equalization and Cycle Service:
14.6 to 14.8 VDC/unit Average at 25°C

Self Discharge:
Batteries can be stored for more than 6 months at 25°C.
Self-discharge ratio less than 3% per month at 25°C.
Please charge batteries before using.

Container Material: A.B.S. UL94-HB, UL94-V0 Optional.


TLV12450F11 - 12V 45Ah Sealed Lead Acid Battery with F11 Terminals - Side Diagram

TLV12450F11 - 12V 45Ah Sealed Lead Acid Battery with F11 Terminals - Top Diagram

TLV12450F11 - 12V 45Ah Sealed Lead Acid Battery with F11 Terminals - Terminal Diagram


Constant Current Discharge Characteristics
TLV12450F11 - 12V 45Ah Sealed Lead Acid Battery with F11 Terminals - Constant Current Discharge Characteristics

Constant Power Discharge Characteristics
TLV12450F11 - 12V 45Ah Sealed Lead Acid Battery with F11 Terminals - Constant Power Discharge Characteristics
(Note) The above characteristics data are average values obtained within three charge/discharge cycles not the mimimum values.


Battery Construction
TLV12450F11 - 12V 45Ah Sealed Lead Acid Battery with F11 Terminals - Battery Construction


TLV12450F11 - 12V 45Ah Sealed Lead Acid Battery with F11 Terminals - Discharge Characteristics   TLV12450F11 - 12V 45Ah Sealed Lead Acid Battery with F11 Terminals - Charge Characteristic Curve

TLV12450F11 - 12V 45Ah Sealed Lead Acid Battery with F11 Terminals - Relationship Between Charging Voltage and Temperature   TLV12450F11 - 12V 45Ah Sealed Lead Acid Battery with F11 Terminals - Self-discharge Characteristic

TLV12450F11 - 12V 45Ah Sealed Lead Acid Battery with F11 Terminals - Life Characteristics of Standby Use   TLV12450F11 - 12V 45Ah Sealed Lead Acid Battery with F11 Terminals - Cycle Service Life in Relation to Depth of Discharge

TLV12450F11 - 12V 45Ah Sealed Lead Acid Battery with F11 Terminals - Temperature Effects on Float Life   TLV12450F11 - 12V 45Ah Sealed Lead Acid Battery with F11 Terminals - Temperature Effects on Capacity
