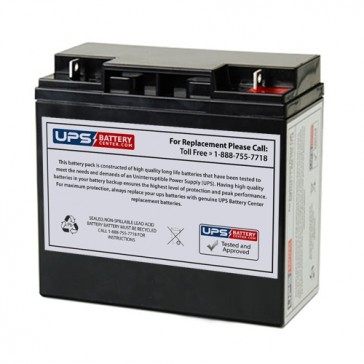

12V 22Ah Deep Cycle Sealed Lead Acid Battery with F3 Terminals

12V 22Ah Sealed Lead Acid Rechargeable Battery
Model: TLV12220D
Terminals: F3 - Nut & Bolt
Length: 181mm (7.13") / Width: 77mm (3.03") / Height: 167mm (6.57")
High Performance
Brand New Fresh Stock
1 Year Warranty Included
Availability: In stock
CAD $87.99

Description

Details

Features of the TLV12220D - 12V 22Ah Deep Cycle Sealed Lead Acid Battery with F3 Terminals

• Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99% and freedom from electrolyte maintenance or water adding
• Not restricted for air transport-complies with IATA/ICAO Special Provision A67
• UL-recognized component
• Can be mounted in any orientation
• Computer designed lead, calcium tin alloy grid for high power density
• Long service life in float or cyclic applications
• Maintenance-free operation
• Low self discharge


Applications

• UPS Standby Power Applications
• Data Centers
• Emergency 911 Centers
• Hospitals & Medical Applications
• Military Power Equipment
• Emergency Lighting
• Fire Detection and Alarm Devices


Product Specifications

Dimensions
Terminal Type: F3
Length (mm/inch): 181/7.13
Width (mm/inch): 77/3.03
Height (mm/inch): 167/6.57
Total Height (mm/inch): 167/6.57
Approx. Weight (kg/lbs): 6.2/13.6


Performance Characteristics

Nominal Voltage: 12V

Nominal Capacity (25ºC):
22Ah@20HR-rate to 1.75V

Internal Resistance: Approx. 14mΩ

Reference Capacity:
C2: 16.1Ah
C3: 17.2Ah
C5: 18.9Ah
C20: 22Ah

Self-Discharge (25°C)
Battery can be stored for up to 6 months
and then recharging is recommended.
Monthly self-discharge ratio is less than 3%.
Please charge battery before using.

Nominal Operating Temperature:
25°C±5°C(77°F±41°F)

Operating Temperature Range
Discharge: -20°C~60°C
Charge: 0°C~50°C
Storage: -20°C~60°C

Float Charging Voltage (25°C):
13.7V to 13.9V Temperature compensation: -3mV/°C

Cyclic Charging Voltage (25°C):
14.6V to 14.8V Temperature compensation: -4mV/°C

Maximum Charging Current: 6.6A

Maximum Discharge Current: 264A (5 sec)
